The 16-hole automatic egg collection box is mainly used for raising two-high and one-low broiler breeders. Eggs are transported smoothly and safely to the front-end egg collection platform through conveyor belts, thus avoiding manpower fatigue and artificial pollution caused by traditional nesting and artificial egg collection methods, improving production efficiency, reducing egg breakage rate, reducing eggs outside the nest, and providing clean and high-quality eggs. Humanized design provides a quiet and comfortable egg laying space for breeders.

Product Properties

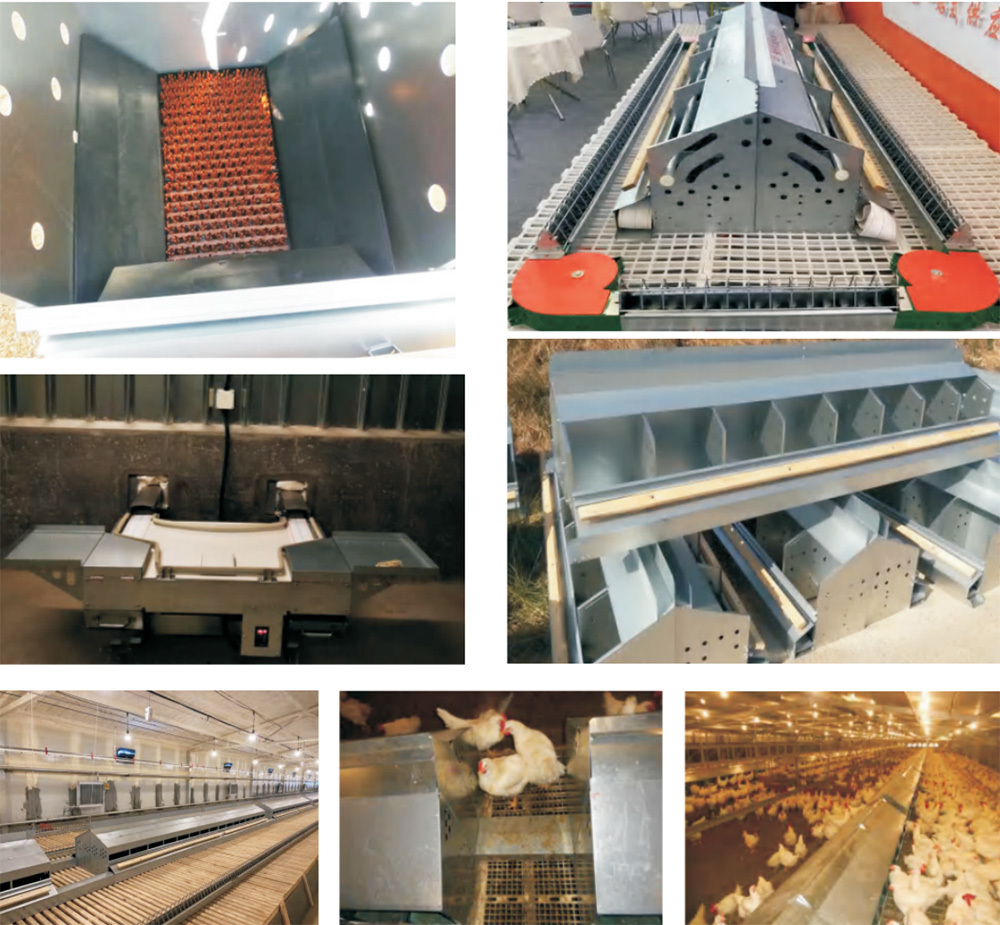

The egg collection system consists of egg collection box, variable speed egg collection table, front egg channel, egg collection box, integrated control system and lifting system.

Box material is 275g hot galvanized sheet, Italy imported straw mat.

egg box specifications

1. Hot galvanized plate box body, double-sided design, soft egg nest straw mat.

2. Each egg box is 2.4 meters long and 0.63 meters wide, with 8 acupuncture points on each side and 16 acupuncture points on both sides, which can be used for 1100 interplanting hens to lay eggs.

3. Each egg box is designed with 8 squares on each side, and each square is 315mm * deep and 300mm wide. The design of the partition opening is reasonable to ensure the freshness of the air in each egg nest, the heat stress of the chicken group is small when laying eggs, and the proportion of eggs outside the nest is reduced with daily management.

4. The wooden strip pedal is convenient for chickens to enter the nest. The inclined design ensures that chicken manure will not be produced in the egg nest.

5. The tilt base device ensures that the eggs roll off the egg collection belt smoothly and prevents the chickens from invading and pecking eggs. The nest is equipped with imported artificial straw mats with exposed dung holes, providing a good egg-laying environment and solving health problems at the same time.

6. The central egg collection system is located at the head end, and the breeding management personnel do not need to enter the chicken house, which is convenient and fast.

7. The egg nest cover is opened when laying eggs and closed at night to prevent chickens from entering. Optional automatic chicken system.

8. The egg box is placed on a high bed. The chicken is convenient to enter and can be lifted as a whole. When the chicken is lifted, it is convenient to clean the chicken house for hygiene.

9. Every 2 egg boxes are in a group, and chickens are left between each group to pass through the corridor to facilitate the passage of chickens. No obstruction to facilitate ventilation management.

Product Features

Provide safe and comfortable egg-laying space for breeders

1. Each group of egg boxes is 2.4 meters long and 0.63 meters wide, with 10 acupuncture points on each side and 16 acupuncture points on both sides, which can be used for 100 interplanting hens to lay eggs (each egg nest should be controlled within 6.5 batches to reduce the proportion of eggs outside the nest).

regular configuration method:

Cultivation quantity * 0.85-0.85 survival rate/egg nest quantity/16 = group number

2. The air quality in the nest is high, clean and comfortable, and the proportion of eggs outside the nest is controlled below 1% (pay attention to the structure of the chicken house and daily management)

3. The special conveyor belt structure ensures that the eggs are clean and smoothly transferred to the front-end egg collection table, and the breakage rate is controlled below 1%. Dark eggs are controlled below 1% (this data comes from Shuanghui, Dadi Breeding, Kangyuan, Jinluo Group, etc.).

Excellent results:

The egg production rate of Dadi Company is 6000 eggs per day and only 32 broken eggs.

Other advantages:

1. can be customized in the middle of the automatic egg box.

2. This section of the egg box can increase the automatic chicken drive system, has been successfully developed, can enjoy preferential experimental policies.

small egg nest egg box egg collection way:

1. Middle egg

2. Egg collection on both sides
